[Flex Series] Flex8

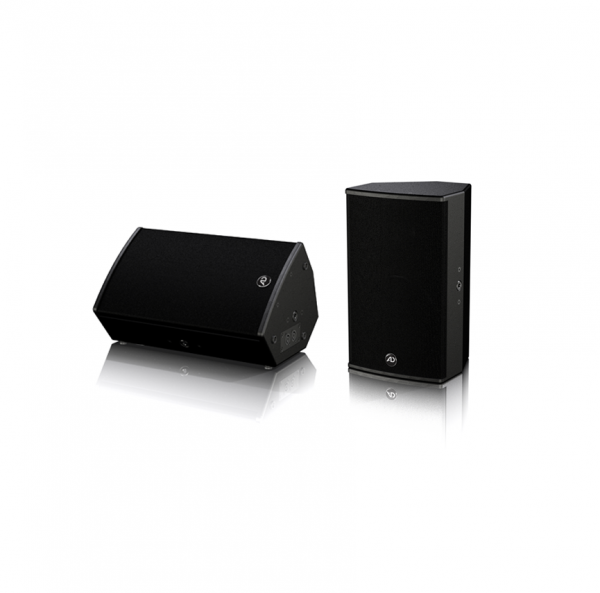

Flex8


Applications



 Small Front of house system

 Compact monitor

 Frontfill / Nearfill / Background



Features + Benefits



 Passive 8” / 1” loudspeaker system

 Rotatable CD horn

 Bi-functional enclosure design

 U-bracket

 Wide range of accessories



Specsheet





 Type

Flex8

 Enclosure

12 mm birch plywood with structure paint and monitor angles

 Principle

2-way passive system, bass-reflex tuning

 Protective Grille

1.5 mm grille, covered with acoustic foam

 Components

8“ neodymium low-mid speaker



1“ ND compression driver with 1.7“ voice coil rotatable CD-Horn passive crossover



with phase correction

 Frequency Response

100 Hz20 kHz +/-3 dB

 Power handling RMS | peak

250 W RMS | 1.000 W Peak

 Impedance

16 Ω

 Dispersion

90° x 60°

 Sound Pressure Level

95 dB

 SPLmax

125 dB | peak | 1 m

 Connectors

NL4: 1+/1- on rear and bottom (2 each)

 Dimensions (w x h x d)

248 x 414 x 224 mm

 Weight

9 kg

 Option

U-bracket, quad flight case

 Accessories

transport cover, transport bag
