[Touring Series] TouringLine

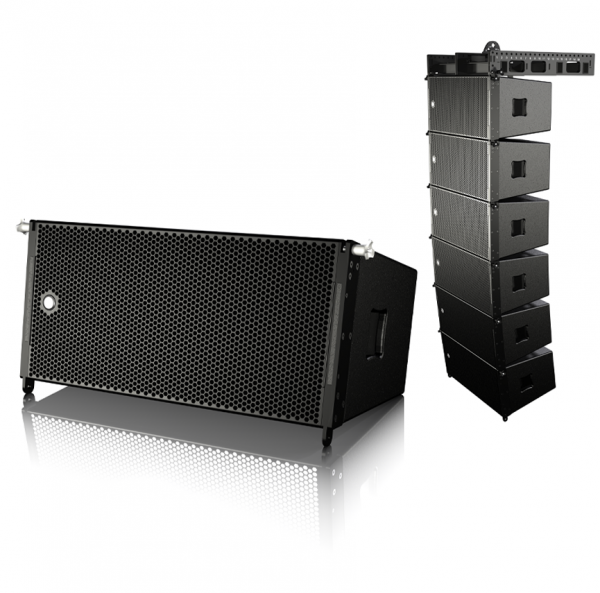

TouringLine


Applications



 FOH system for audiences of 1.000-15.000 people

 Sidefill / outfill for large stages

 Fixed installation

 Scalable up to 24 elements



Features + Benefits



 compact, elegant, highly efficient design

 12“ high performance neodymium low-mid woofer

 1,4“ high performance neodymium compression driver

 Polyurea coated enclosure made of heavy-duty bircplywood,

    equipped with T6 aluminium fittings



Specsheet





 Type

TouringLine

 Enclosure

15 mm baltic birch plywood w/ Polyurea coating

 Basic layout

2-Way passive, bass reflex tuning

 Protective Grille

2.0 mm sheet steel, hex-stamped, black acoustic foam on inside

 Components

12“ ND low mid woofer w/ 3.5“  voice coil 1.4“ ND compression driver w/



3“ voice coil on DoubleV  waveformer passive crossover w/ phase correction

 Frequency Response

60 Hz18 kHz +/-3 dB,

 Power handling RMS | peak

700 W RMS | 2.500 W Peak

 Nominal Impedance

8 Ω

 Dispersion pattern

90° x 10°

 Sensitivity

99 dB Lo-Mids, 110 dB High

 SPLmax

133 dB (peak) @ 1m, 1 element

 Connectors

NL4: 1+/1-

 Dimensions (w x h x d)

700 x 329 x 400 mm

 net weight

29 kg

 Accessories

Transport-Dolly, Rigging-Frame, Laser Inclinometer



Downloads





Ease Focus v2.5.10 Prediction Tool
TouringLine GLL V3.1
Touringline_drawing_pdf
Touringline_drawing_dwg
Touringline_datasheet_engl
