[Touring Series] TouringLine Compact

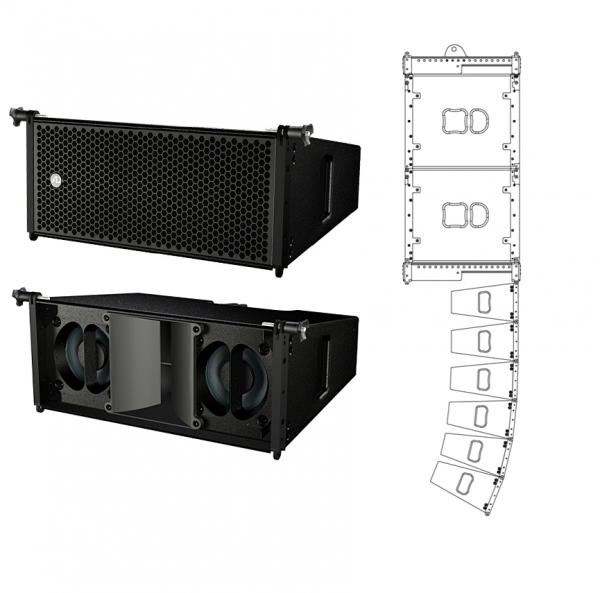

TouringLine Compact


Applications



 • FOH system for audiences of 500-5.000 people

 • Sidefill / Outfill for large stages

 • Fixed installation

 Scalable up to 16 elements



Features + Benefits



 very compact, elegant and light weight design

 2x 6.5“ high performance neodymium low mid woofers

 1.4“ high performance neodymium compression driver

 Polyurea coated enclosure made of baltic birch plywood, equipped with T6 aluminium fittings



Specsheet





 Type

TouringLine Compact

 Enclosure

12/15 mm baltic birch plywood w/ Polyurea coating

 Basic layout

2-Way passive, bass reflex tuning

 Protective Grille

2.0 mm sheet steel, hex-stamped, black acoustic foam on inside

 Components

2x6.5“ ND low mid woofer 1.4“ ND compression  driver w/ 2.5“ VC



on BEM DoubleV waveformer  passive crossover w/ phase correction

 Frequency Response

90 Hz17 kHz +/-3 dB,

 Power handling RMS | peak

75 Hz 400 W RMS | 1.600 W Peak

 Nominal Impedance

12 Ω

 Dispersion pattern

90° x 15°

 Sensitivity

95 dB Lo-Mids, 109 dB High

 SPLmax

127 dB (peak) @ 1m, 1 element

 Connectors

NL4: 1+/1-

 Dimensions (w x h x d)

500 x 208 x 355 mm

 net weight

14 kg

 Accessories

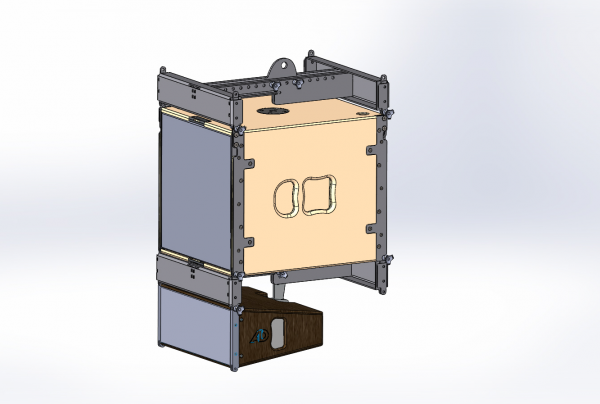

Transport-Dolly, Rigging-Frame, Laser Inclinometer


Downloads





Ease Focus v2.5.10 Prediction Tool
TouringLine-Compact-V4.0.gll_
TouringlineCompact_drawing_pdf
TouringlineCompact_drawing_dwg
touringlinecompact_datasheet_engl
