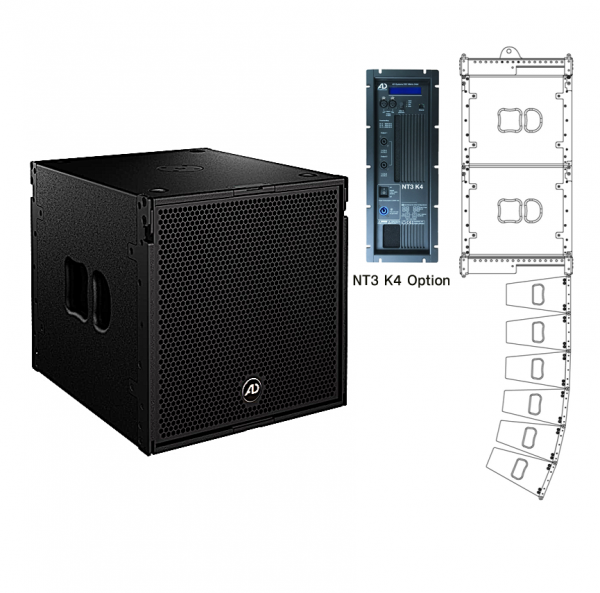

[Touring Series] TouringLine Compact Bass

TouringLine Compact Bass


Features + Benefits



 • Bass or Low-Mid Extender for the TouringLine Compact

 • Usable flown or groundstacked

 15“ Neodymium High Power Transducer

 1.200 cont. / 8 Ohms



Specsheet





 Type

TouringLine Compact Bass

 Enclosure

15 mm heavily braced Baltic birch plywood w/ Polyurea coating

 Basic layout

subwoofer, bass reflex tuned

 Protective Grille

2.0 mm sheet steel, hex-stamped, black acoustic foam on inside

 Components

15“ long excursion ND woofer w/ vortex ventilated 4“ voice coil

 Frequency Response

33Hz250Hz +/-3 dB,

 Power handling RMS | peak

1.200 W RMS | 4.800 W Peak

 Nominal Impedance

8 Ω

 Dispersion pattern

Omni directional

 Sensitivity

96 dB

 SPLmax

132 dB (peak) @ 1m

 Connectors

NL4: 2+/2-

 Dimensions (w x h x d)

500 x 500 x 600 mm

 net weight

41,6 kg

 Accessories

swivel castors, transport cover, front board / wheel board


Downloads

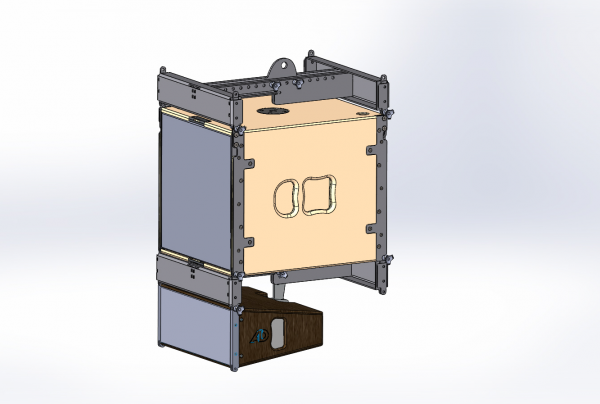

tlcb_drawing_dwg
tlcb_drawing_pdf
