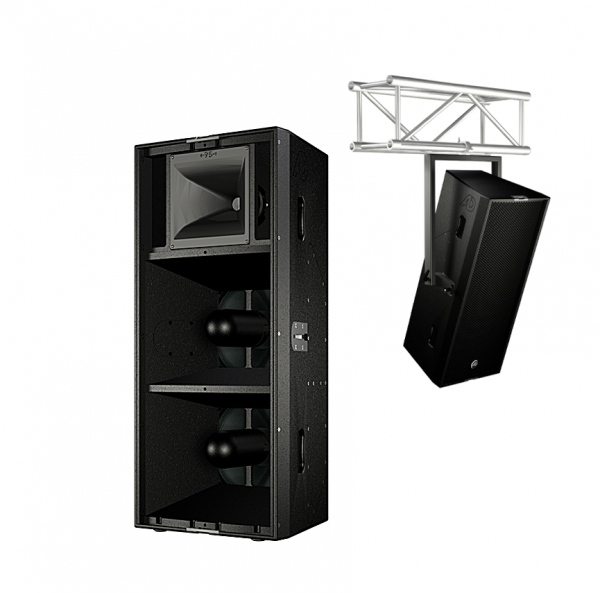

[Touring Series] Stium

Stium


Applications



 FOH system for audiences of 300 - 3.000 people

 Sidefill / Outfill / Infill / Drumfill for big stages

 • fixed installation



Features + Benefits



 highly efficient, fully horn loaded loudspeaker system

 fully usable from 100Hz upwards, SPLmax >140dB

 2x 12“ high performance neodymium low-mid woofers

 • 1.4“ high performance neodymium compression driver

 • heavily braced Baltic birch plywood, Polyurea coated



Specsheet





 Type

Stium

 Enclosure

15 mm baltic birch plywood w/ Polyurea coating

 Basic layout

2.5-Way passive, horn and reflex loaded

 Protective Grille

2.0 mm sheet steel, hex-stamped, black acoustic foam on inside

 Components

2x12“ ND low mid woofer w/ 3“ VC



1.4“ ND compression driver w/ 3.0“ VC on 75°x 50° BEM CD-Horn passive crossover



w/ phase correction

 Frequency Response

100 Hz18 kHz +/-3 dB,

 Power handling RMS | peak

750 W RMS | 3.000 W Peak

 Nominal Impedance

6 Ω

 Dispersion pattern

75° x 50° constant coverage

 Sensitivity

108 dB Lo-Mids, 111 dB High

 SPLmax

143 dB (peak) @ 1m

 Connectors

NL4: 1+/1-

 Dimensions (w x h x d)

450 x 1020 x 420 mm

 net weight

44.5 kg

 Accessories

Pan-tilt bracket, wheel board


Downloads





Stium_drawing_dwg
Stium_drawing_pdf
Short datasheet Stium_engl
Productinformation Sheet Stium_engl
