[Touring Series] Magnus12

Magnus12


Applications



 FOH loudspeaker system

 High-End Monitor, Frontfill / Nearfill

 Expandable with subs formaing up a powerful front PA



Features + Benefits



 Elegant design, compact dimensions, low weight

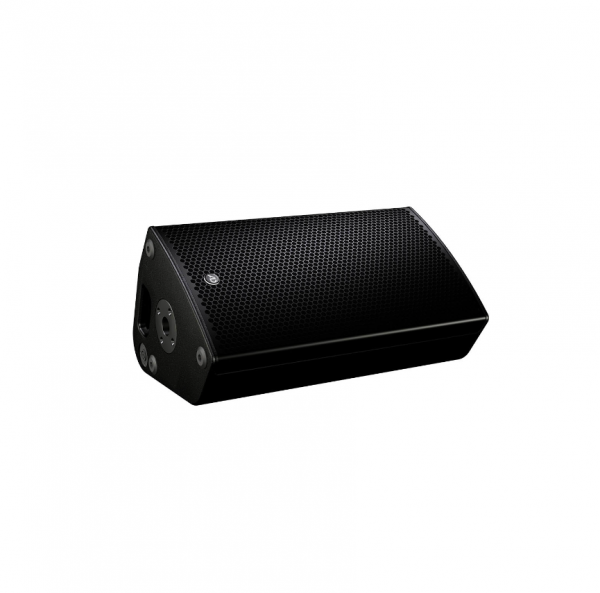

 Wedge angle 55°, left & right versions available

 12“ high performance neodymium transducers

 1.4“ high performance neodymium compression driver

 optional pan-tilt bracket for easy rigging



Specsheet





 Type

Magnus12

 Enclosure

15/24 mm birch plywood w/ Polyurea coating, 55° wedge angle

 Basic layout

2-Way passive, bass reflex tuning

 Protective Grille

2.0 mm sheet steel, hex-stamped, black acoustic foam on inside

 Components

12“ ND low mid woofer w/ 3.5“ voice coil



1.4“ ND compression driver w/ 2.5“ VC on 75° x 50° BEM CD-Horn passive crossover



w/ phase correction

 Frequency Response

55 Hz18 kHz +/-3 dB,

 Power handling RMS | peak

600 W RMS | 2.400 W Peak

 Nominal Impedance

6 Ω

 Dispersion pattern

75° x 50° constant coverage

 Sensitivity

99 dB Lo-Mids, 109 dB High

 SPLmax

133 dB (peak) @ 1m

 Connectors

NL4: 1+/1-

 Dimensions (w x h x d)

350 x 620 x 316 mm

 net weight

20.6 kg

 Accessories

 Pan-tilt bracket, twin road case
