[Touring Series] Magnus15

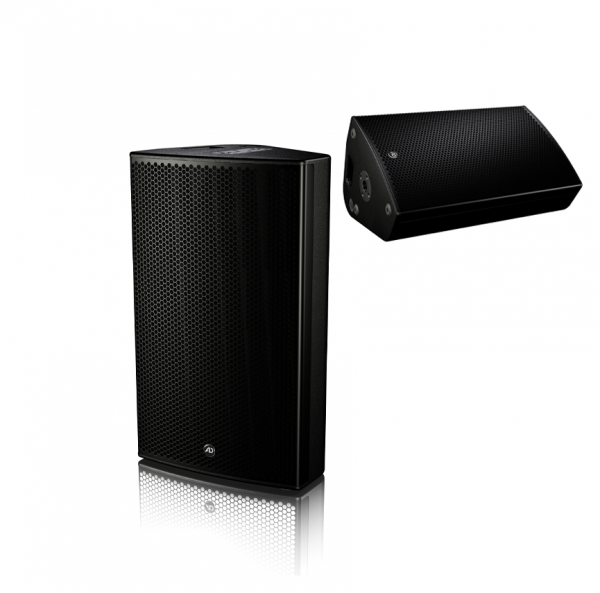

Magnus15


Applications



 FOH loudspeaker system

 High-End Monitor, Frontfill / Nearfill

 Expandable with subs formaing up a powerful front PA



Features + Benefits



 Elegant design, compact dimensions, low weight

 Wedge angle 55°, left & right versions available

 15“ high performance neodymium transducers

 1.4“ high performance neodymium compression driver

 optional pan-tilt bracket for easy rigging



Specsheet





 Type

Magnus15

 Enclosure

15/24 mm birch plywood w/ Polyurea coating, 55° wedge angle

 Basic layout

2-Way passive, bass reflex tuning

 Protective Grille

2.0 mm sheet steel, hex-stamped, black acoustic foam on inside

 Components

15“ ND low mid woofer w/ 3.5“ voice coil



1.4“ ND compression driver w/ 2.5“ VC on 75° x 50° BEM CD-Horn



passive crossover w/ phase correction

 Frequency Response

55 Hz18 kHz +/-3 dB,

 Power handling RMS | peak

600 W RMS | 2.400 W Peak

 Nominal Impedance

6 Ω

 Dispersion pattern

75° x 50° constant coverage

 Sensitivity

100 dB Lo-Mids, 109 dB High

 SPLmax

134 dB (peak) @ 1m

 Connectors

NL4: 1+/1-

 Dimensions (w x h x d)

430 x 700 x 362 mm

 net weight

23.4 kg

 Accessories

Pan-tilt bracket, twin road case, padded transport cover


Downloads





Magnus15_drawing_dwg
Magnus15_drawing_pdf
magnus15_datasheet_engl
