[Touring Series] TouringStick

TouringStick


Applications



 Worship

 Live Music

 Conferences

 Corporate Events

 Delay Lines

 • Expandable with subs formaing up a powerful front PA



Features + Benefits



 Elegant design, compact dimensions, low weight

 • 4 x 6.5“ inch and 3 x 1“ Neodymium Tranducers

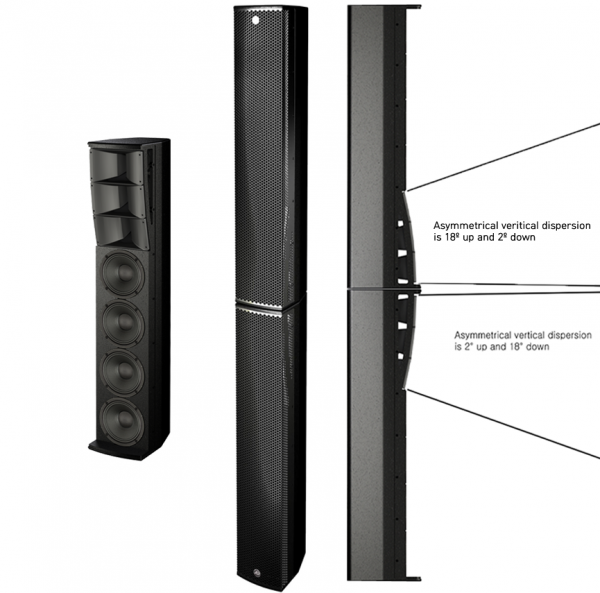

 Headstacking with 2 TouringStick is possible

 Headstacking with 2 TouringStick is possible



Specsheet





 Type

TouringStick

 Enclosure

15/18 mm birch plywood w/ Polyurea coating, 55° wedge angle

 Basic layout

2-Way passive, bass reflex tuning

 Protective Grille

1.5 mm sheet steel, hex-stamped, black acoustic foam on inside

 Components

4 x 6.5“ ND low mid woofer w/ 2.0“ voice



coil 3 x 1.0“ ND compression driver w/ 1.5“ VC on 90° x 20 ° BEM Waveformer with passive



crossover w/ phase correction

 Frequency Response

70 Hz18 kHz +/-3 dB,

 Power handling RMS | peak

700 W RMS | 2.000 W Peak

 Nominal Impedance

8 Ω

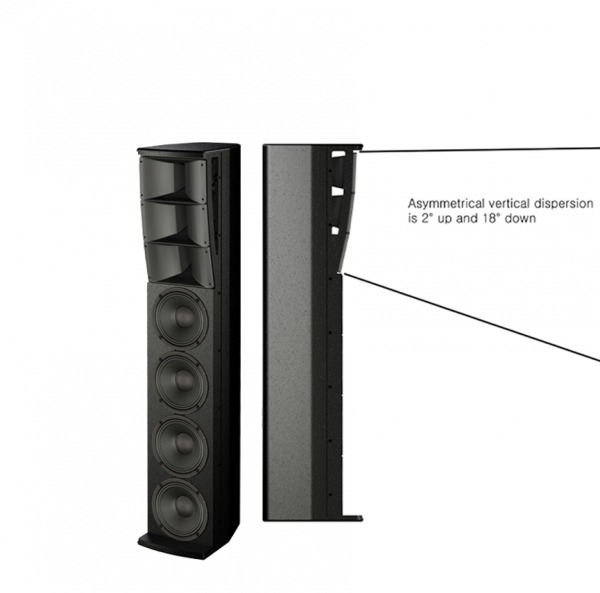

 Dispersion pattern

90° x 20° constant coverage

 Sensitivity

98 dB Lo-Mids, 109 dB High

 SPLmax

133 dB (peak) @ 1m

 Connectors

NL4: 1+/1-

 Dimensions (w x h x d)

200 x 1050 x 280 mm

 net weight

21 kg

 Accessories

Pan-tilt bracket, road case

Downloads





TouringStick_drawing_dwg
TouringStick Dimension
Touringstick Dimension Rigging
Accessory Dimension Doublestack-Connector
Accessory Dimension Flyadaper
Accessory Dimension Pitchadaper
