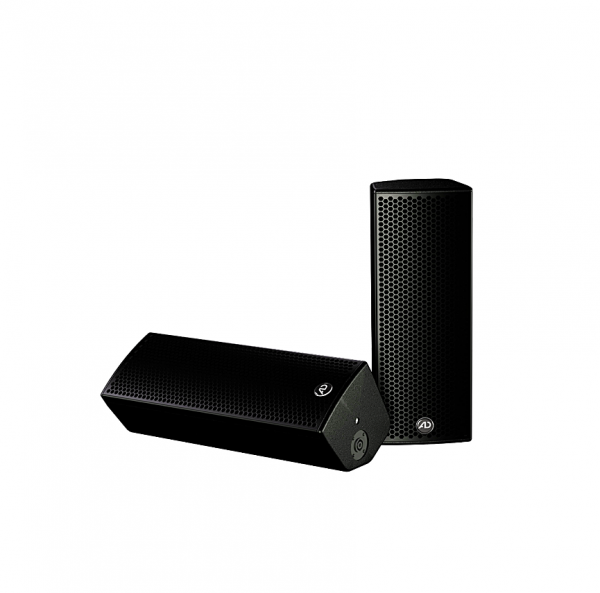

[Touring Series] MagnusCompact

MagnusCompact


Applications



 Worship / Live Music

 Conferences

 Corporate Events

 Delay Lines

 Expandable with subs formaing up a powerful front PA

 FOH loudspaker system

 High-End Monitor, Frontfill / Nearfill



Features + Benefits



 Elegant design, compact dimensions, low weight

 Monitor angle 55°

 2 x 5“ neodymium high performance transducers

 1.0“ high performance neodymium compression driver

 optional pan-tilt bracket for easy rigging - identical

                          Wbracket for horizontal and vertical use



Specsheet





 Type

MagnusCompact

 Enclosure

12/15 mm birch plywood w/ Polyurea coating, 55° wedge angle

 Basic layout

2-Way passive, bass reflex tuning

 Protective Grille

1.5 mm sheet steel, hex-stamped, black acoustic foam on inside

 Components

2 x 5“ ND low mid woofer w/ 1.5“ voice coil



1.0“ ND compression driver w/ 1.4“ VC on 90° x 60° BEM CD-Horn passive crossover



w/ phase correction

 Frequency Response

75 Hz18 kHz +/-3 dB

 Power handling RMS | peak

250 W RMS | 1.000 W Peak

 Nominal Impedance

12 Ω

 Dispersion pattern

90° x 60° constant coverage

 Sensitivity

92 dB Lo-Mids, 108 dB High

 SPLmax

122 dB (peak) @ 1m

 Connectors

NL4: 1+/1-

 Dimensions (w x h x d)

160 x 450 x 160 mm

 net weight

5,9 kg

 Accessories

 Pan-tilt bracket, road case


Downloads



Magnus_Compact_drawing_dwg
Magnus_Compact_drawing_pdf
