[Touring Series] PicoSpot

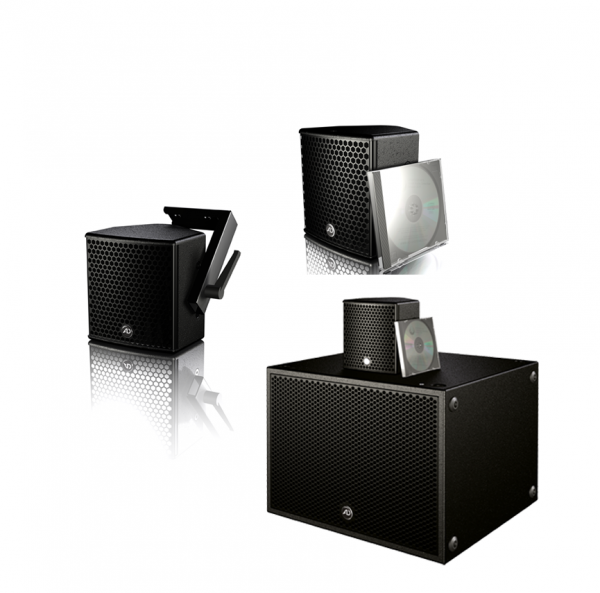

PicoSpot


Applications



 Nearfill, under balconies

 Very compact main system

 Fixed installations

 Conference rooms

 TV Station



Features + Benefits

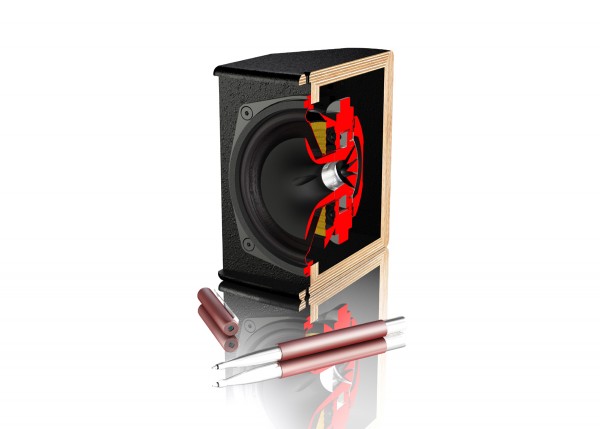

 5“ highpower coax transducer

 Ultracompact, ultralight

 Weather proof enclosure made of baltic birch plywood

 Finished in black Polyurea coating



Specsheet





 Type

PicoSpot

 Enclosure

12 mm birch plywood w/ Polyurea coating, 55° wedge angle

 Basic layout

2-Way coaxial, passive, closed box

 Protective Grille

1.5 mm sheet steel, hex-stamped, black acoustic foam on inside

 Components

5“ coaxial ND low mid woofer



1.0“ ND compression driver w/ 1.7“ voice coilon 90° circular horn passive crossover



with phase correction

 Frequency Response

100 Hz19 kHz +/-3 dB,

 Power handling RMS | peak

175 W RMS | 700 W Peak

 Nominal Impedance

16 Ω

 Dispersion pattern

90° circular

 Sensitivity

91 dB

 SPLmax

119 dB (peak) @ 1m

 Connectors

NL4: 1+/1-

 Dimensions (w x h x d)

155 x 165 x 155,2 mm

 net weight

3 kg

 Accessories

Pan-Tilt bracket , transport bag


Downloads



Picospot_drawing_dwg
Picospot_drawing_pdf
