[Touring Series] TouringWedge12

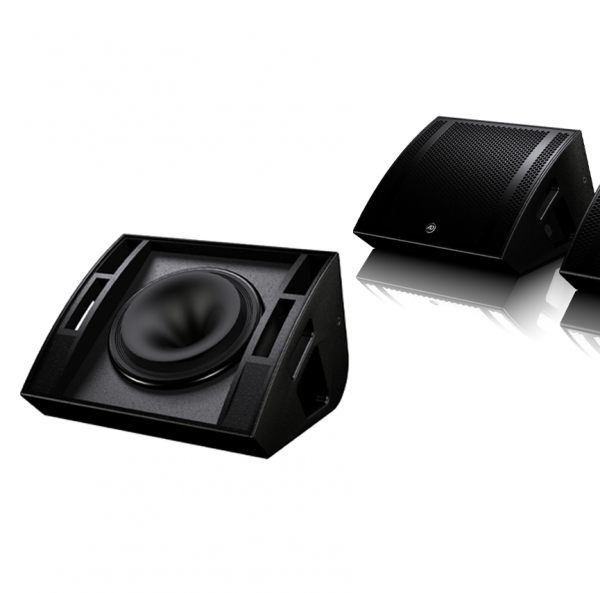

TouringWedge12


Applications



 High performance stage monitor wedge for vocal and instrumental performers

 Drumfill, keyboard, bass, guitar and DJ monitoring

 Sidefill monitoring small and medium sized stages

 Expandable with subs forming up a compact front PA



Features + Benefits



 Low profile shape and hidden connectors for discreet appearance in TV applications

 Coaxial design for perfectly symmetric coverage pattern

 12“/1.4“ or 15“/1.4“ high performance neodymium transducers

 Compact enclosure made of Baltic birch plywood, Polyurea coated

 • Sturdy powder coated grille made of 2mm sheet steel



Specsheet





 Type

TouringWedge12

 Enclosure

15 mm birch plywood w/ Polyurea coating, 55° wedge angle

 Basic layout

2-Way coaxial, passive, bass reflex

 Protective Grille

2.0 mm sheet steel, hex-stamped, black acoustic foam on inside

 Components

12“ coaxial ND low mid woofer w/ 3.5“ VC



1.4“ ND compression driver w/ 2.5“ voice coilon 60° circular horn passive crossover



with phase correction

 Frequency Response

65 Hz18 kHz +/-3 dB,

 Power handling RMS | peak

600 W RMS | 2.400 W Peak

 Nominal Impedance

8 Ω

 Dispersion pattern

60° circular

 Sensitivity

99 dB

 SPLmax

133 dB (peak) @ 1m

 Connectors

NL4: 1+/1-

 Dimensions (w x h x d)

500 x 334 x 463 mm

 net weight

19.8 kg

 Accessories

horizontal bracket, twin road case


Downloads





Touringwedge12_drawing_dwg
Touringwedge12_drawing_pdf
