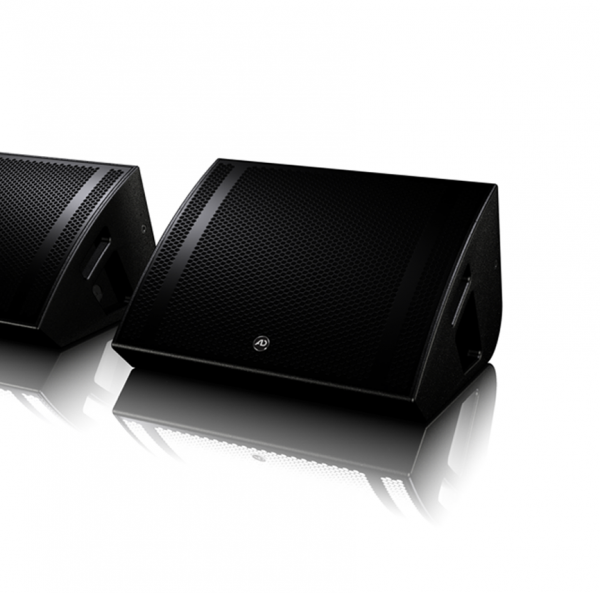

[Touring Series] TouringWedge15

TouringWedge15


Applications



 High performance stage monitor wedge for vocal and instrumental performers

 Drumfill, keyboard, bass, guitar and DJ monitoring

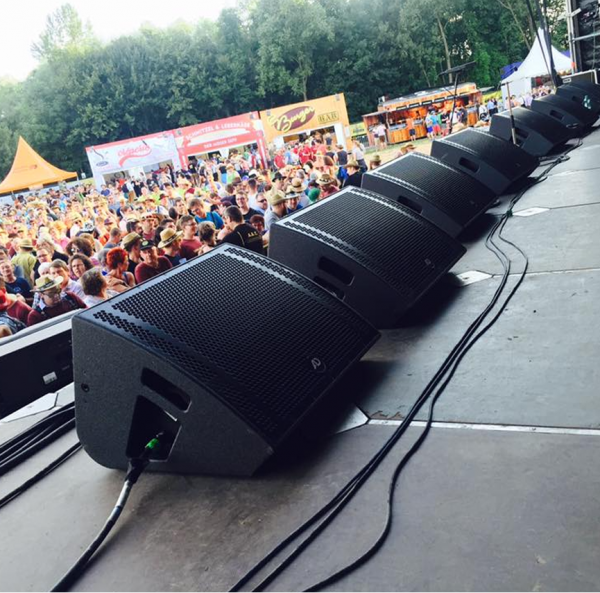

 Sidefill monitoring small and medium sized stages

 Expandable with subs forming up a compact front PA



Features + Benefits



 Low profile shape and hidden connectors for discreet appearance in TV applications

 Coaxial design for perfectly symmetric coverage pattern

 12“/1.4“ or 15“/1.4“ high performance neodymium transducers

 Compact enclosure made of Baltic birch plywood, Polyurea coated

 Sturdy powder coated grille made of 2mm sheet steel



Specsheet





 Type

TouringWedge15

 Enclosure

15 mm birch plywood w/ Polyurea coating, 55° wedge angle

 Basic layout

2-Way coaxial, passive, bass reflex

 Protective Grille

2.0 mm sheet steel, hex-stamped, black acoustic foam on inside

Components

15“ coaxial ND low mid woofer w/ 3.5“ VC



1.4“ ND compression driver w/ 2.5“ voice coilon 60° circular horn passive crossover



with phase correction

 Frequency Response

65 Hz18 kHz +/-3 dB,

 Power handling RMS | peak

600 W RMS | 2.400 W Peak

 Nominal Impedance

8 Ω

 Dispersion pattern

60° circular

 Sensitivity

100 dB

 SPLmax

134 dB (peak) @ 1m

 Connectors

NL4: 1+/1-

 Dimensions (w x h x d)

590 x 349 x 513 mm

 net weight

23.3 kg

 Accessories

horizontal bracket, twin road case


Downloads



Touringwedge15_drawing_dwg
Touringwedge15_drawing_pdf
Touringwedge15_datasheet_engl
